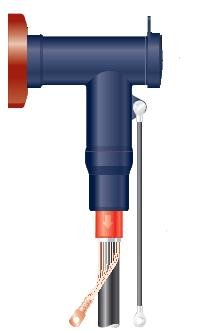

Raychem Separable Connectors (24kV)

Raychem Separable Connectors (24kV)

Raychem Separable Connectors (24kV)

SKU: RSTI-5855

Raychem screened, separable connection system 800 A up to 24 kV. Set of 3.

Email Enquiry

Raychem Separable Connectors (24kV) insulation is made of a highly modified silicone rubber for high tracking resistance, elongation at break and non-flammability.  Raychem Separable Connectors (24kV) design fits 630/1250 A bushings type “C” as specified by EN50180 and EN50181, and supports the use of double “T” connections inside standard terminal boxes.

Raychem Separable Connectors (24kV) have a ide application range:

  • Raychem Separable Connector 35-70mm2
  • Raychem Separable Connector 95-240mm2
  • Raychem Separable Connector 185-300mm2
  • Raychem Separable Connector 400mm2
  • Raychem Separable Connector 630mm2

Raychem Separable Connectors (24kV) features

  • Thin-walled screen is permanently bonded onto the insulation and protects
    the connection system against unintentional contact
  • Screened connector need not be removed for oversheath testing
  • Screened cable connector exceeds CENELEC HD 629.1 S2 requirements, which includes BS, VDE and other international specifications
  • Design fits 630/1250 A bushings type “C” as specified by EN50180 and EN50181
  • Compact design supports the use of double “T” connections inside standard terminal boxes
  • Conductor connection with mechanical or DIN lugs
  • Easily accessible rear plug with capacitive test point
  • Few accessories required for system test, double “T” and earth connections
